Home » HPT F3 7170 Mirror Image Turbocharger Package (V-Band 0.96 A/R)
HPT Turbo

HPT F3 7170 Mirror Image Turbocharger Package (V-Band 0.96 A/R)

In stock
SKU: F3-7170-96VS-MS
$3,631.25
Sale $5,187.50 $3,631.25

Want to know if this product is right for you? Fill out this form with your questions and our tech team will get back to your shortly!

Also, we have a Spec My Turbo form that our team reviews daily to send you back a free quote!

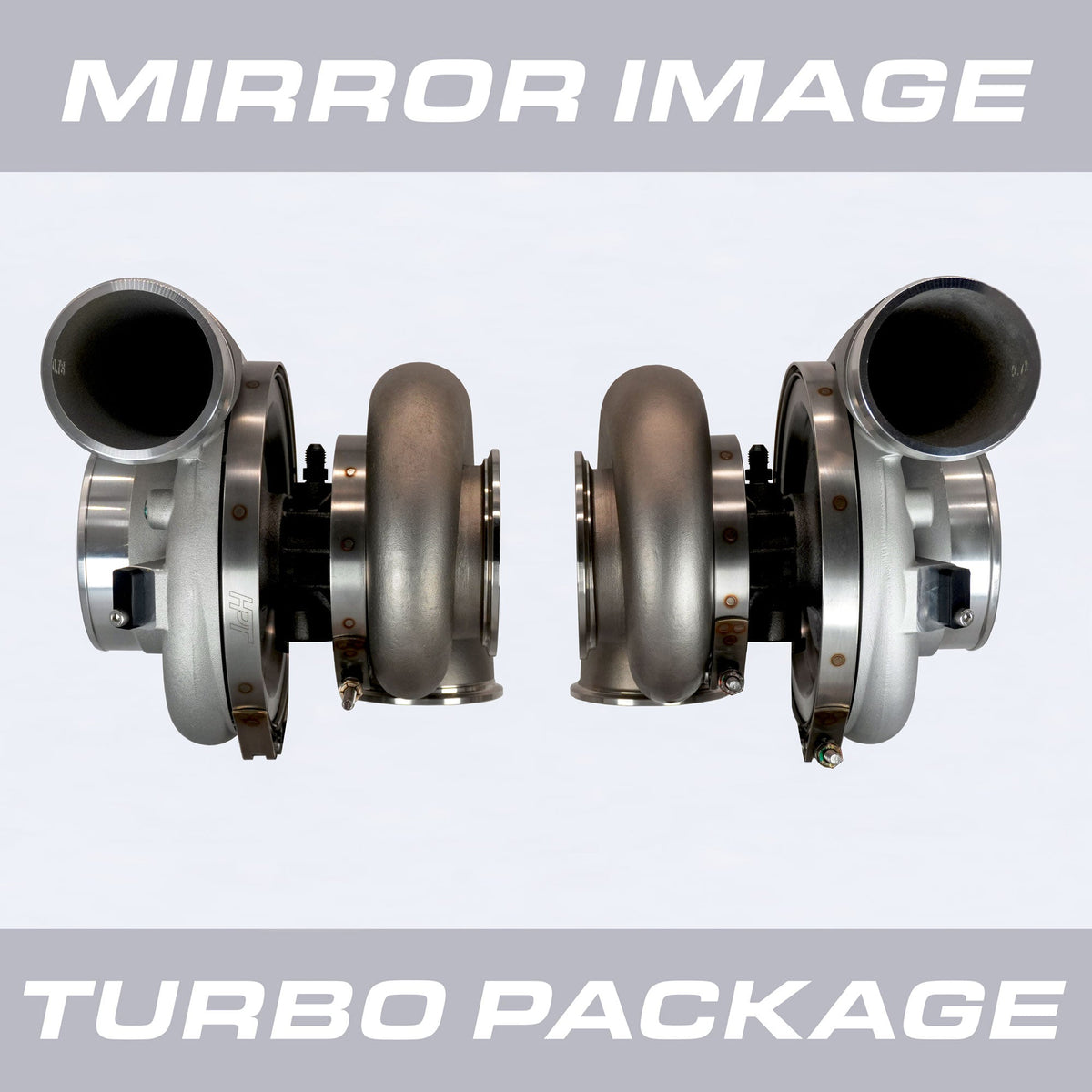

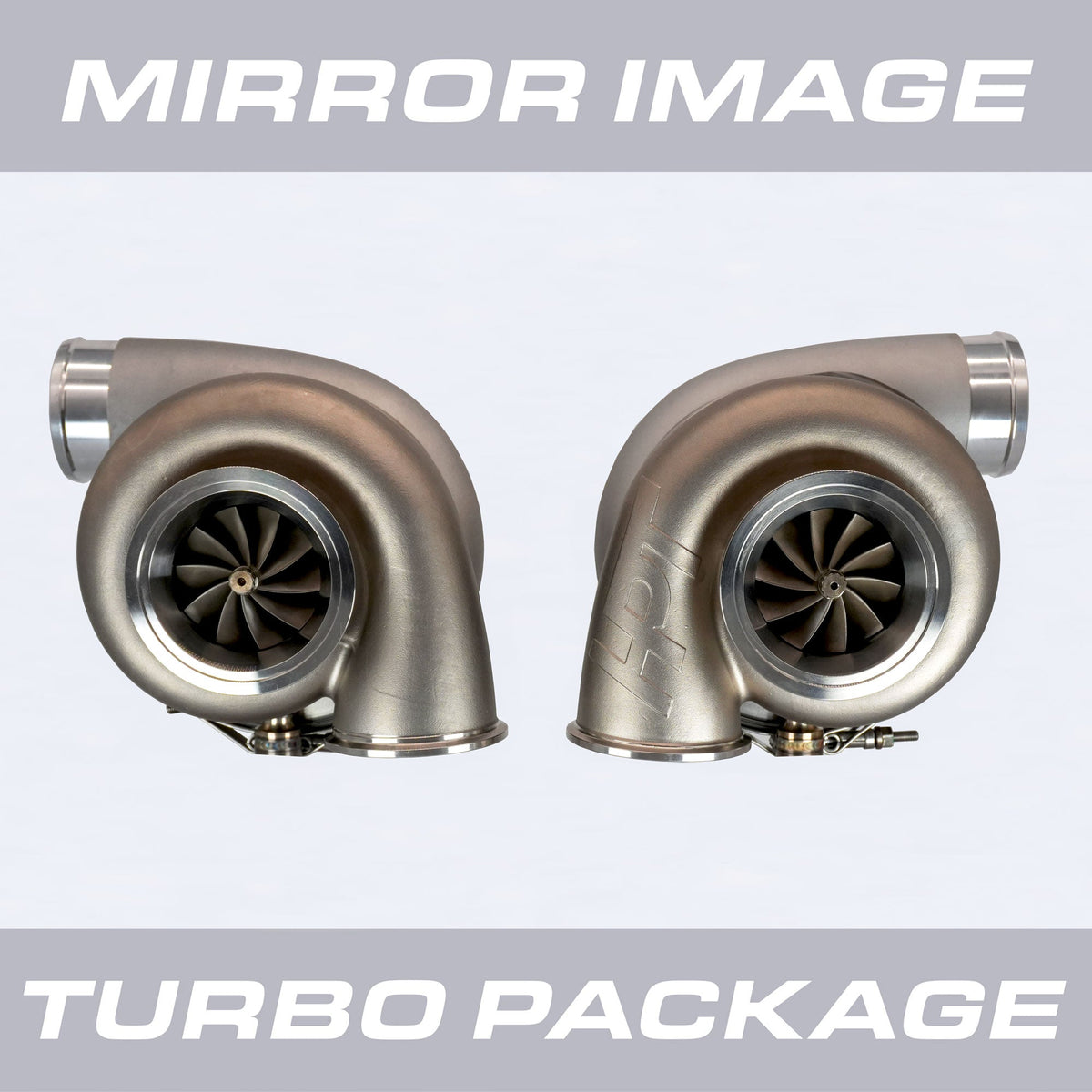

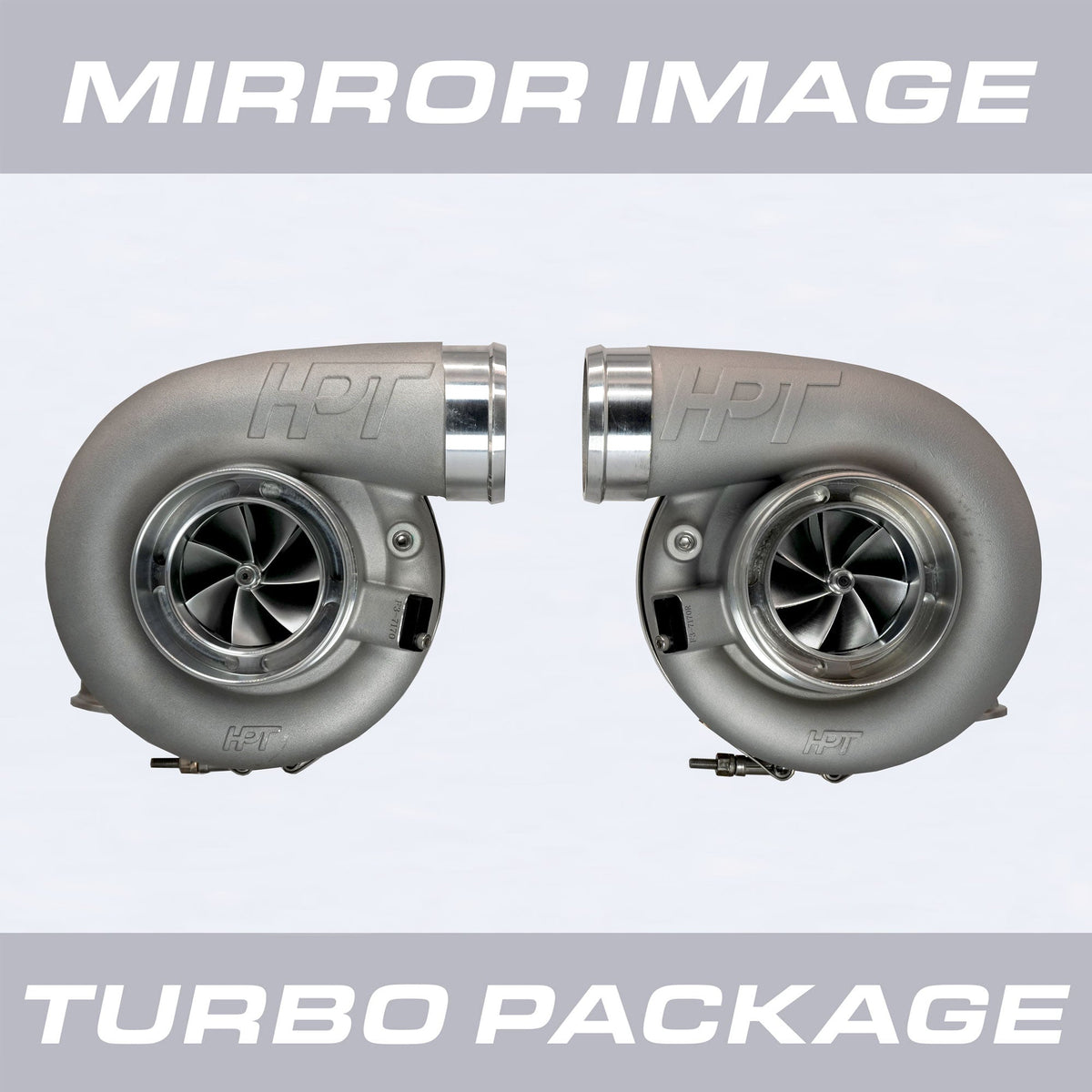

F3 7170 Mirror Image Turbos with V-Band .96 A/R Turbine Housings

F3 7170 Mirror Image Kit Includes:

  • (1) F3 7170 Standard Rotation Turbocharger

  • (1) F3 7170 Reverse Rotation Turbocharger

  • (2) Inlet Clamps

  • (2) Inlet Flanges (For 3.00" Piping)

  • (2) Discharge Clamps

  • (2) Discharge Flanges (For 3.50" Piping)

  • (2) 10AN Oil Drain Fittings



Capable of Supporting up to 2200 Horsepower

The F3 7170 Turbocharger is equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag.

Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.

Features:

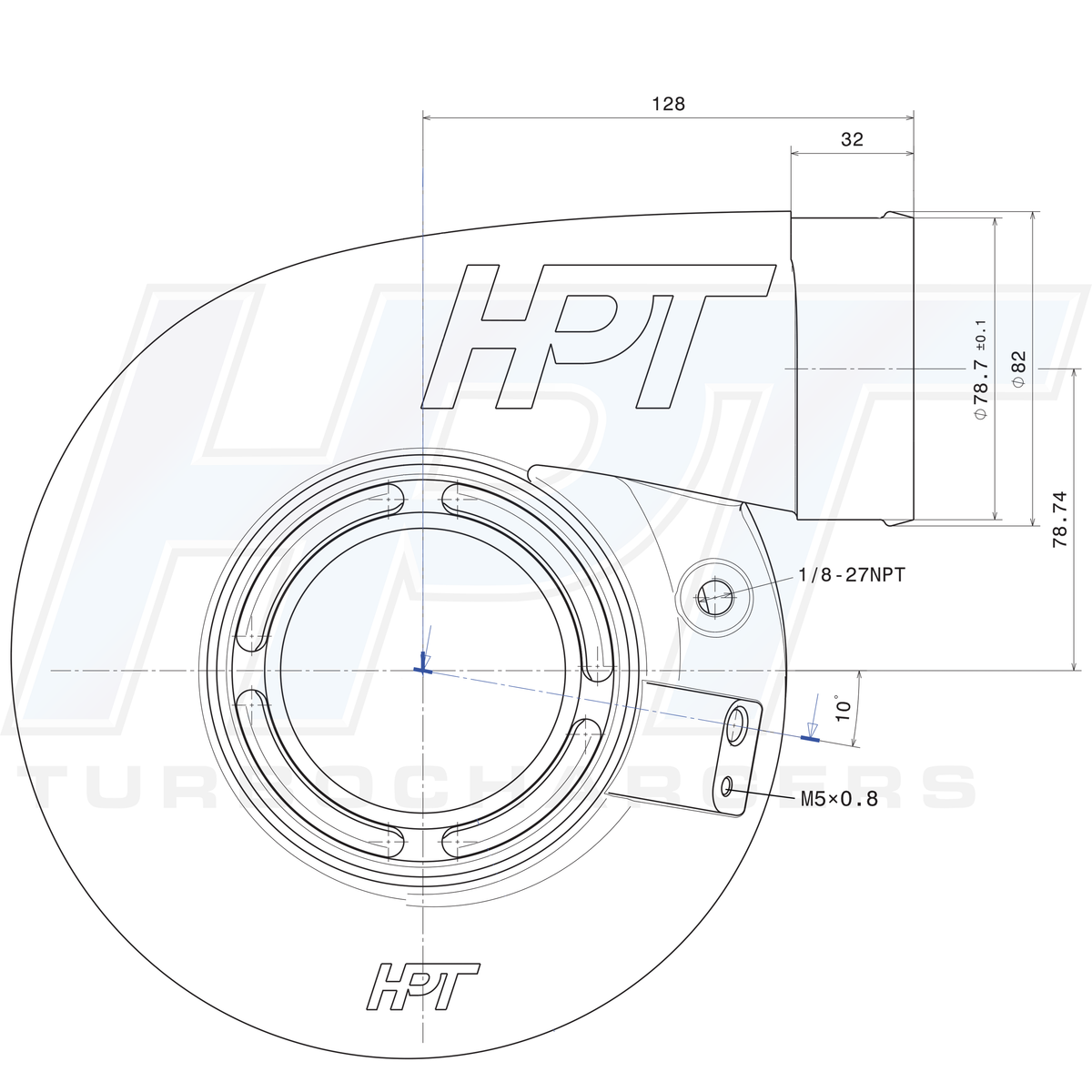

  • F3 Compressor Cover w/ Ported Shroud
  • 2618 Aluminum Compressor Wheel
  • 713C Inconel Turbine Wheel
  • Cast Iron Bearing Housing w/ Integrated Back Plate
  • Ceramic Dual Ball Bearing System
  • 310 Investment Cast Stainless Steel Turbine Housing

Specs:

  • Compressor Cover Inlet: 4"
  • Compressor Cover Discharge: 3"
  • Compressor Wheel Inducer: 71.80mm
  • Turbine Wheel Exducer: 70.00mm



Stainless Steel Turbine Housing Options:

  • V-Band Inlet V-Band Discharge 0.96 A/R







Racing Use Only, Not Legal for Road Use
