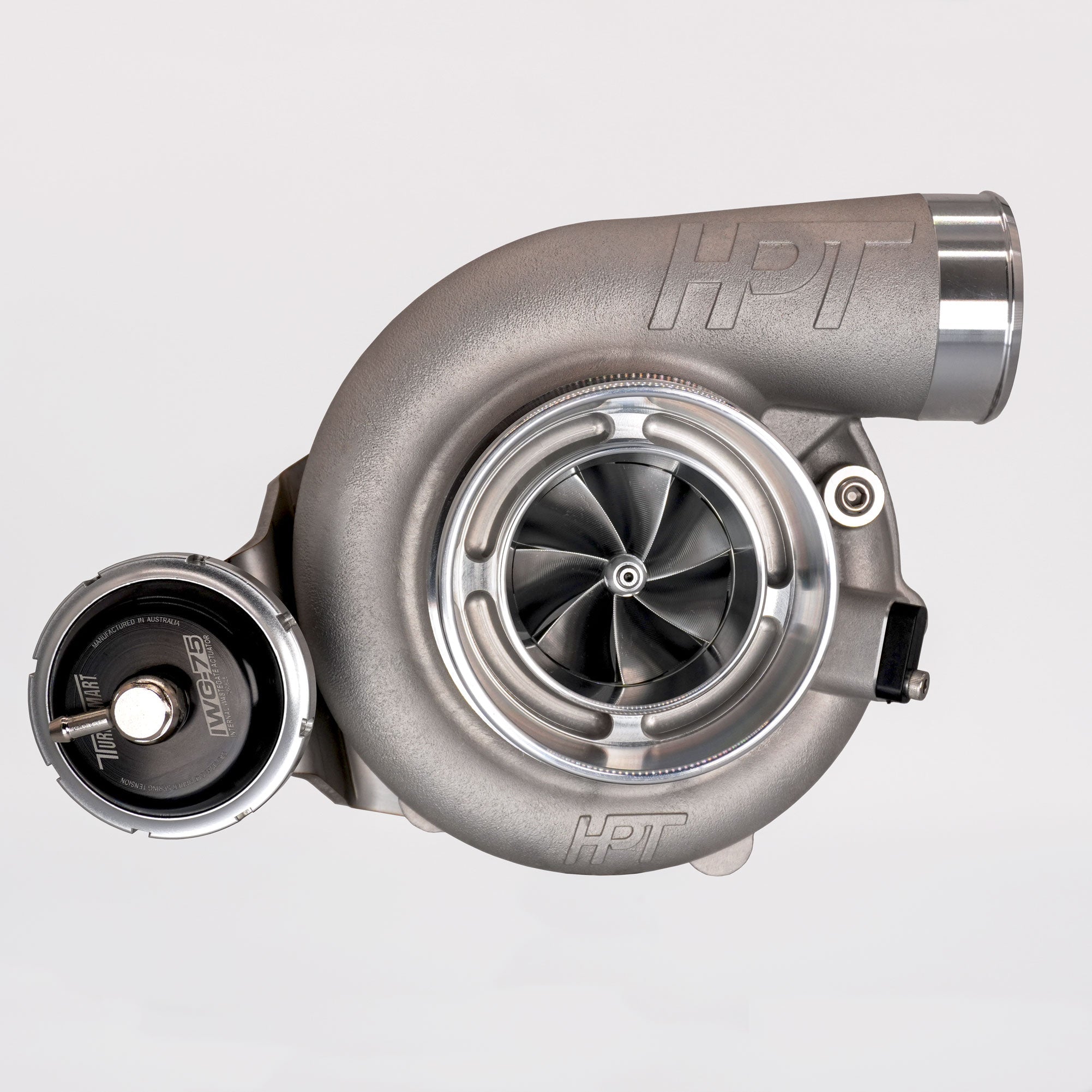

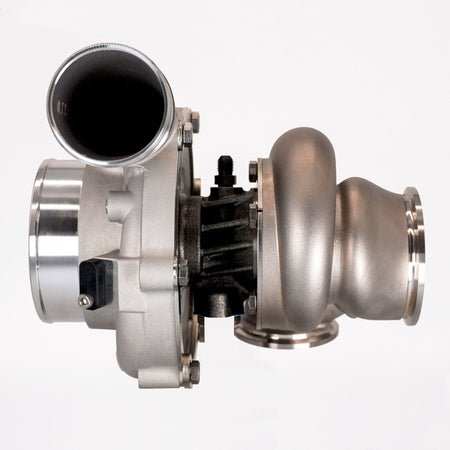

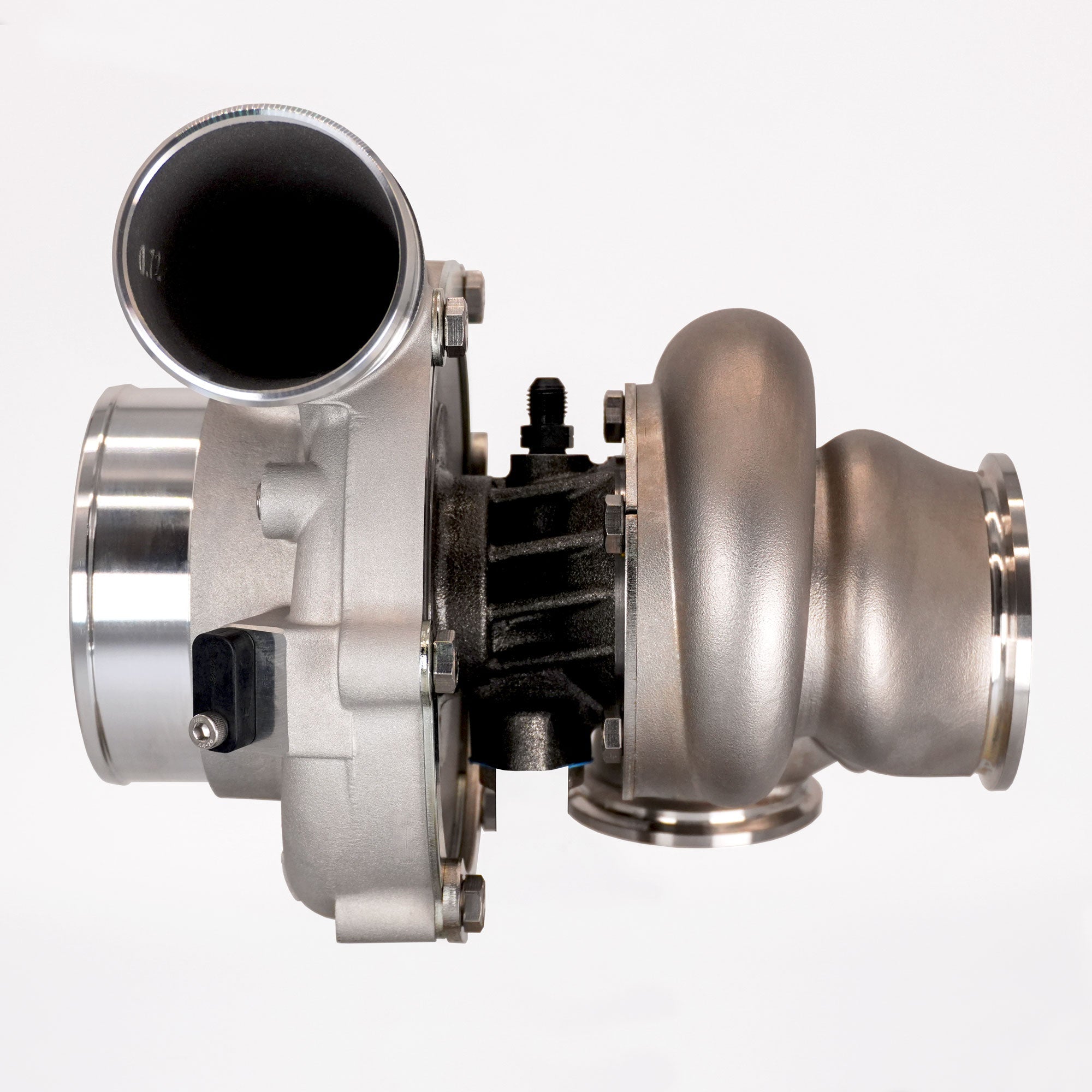

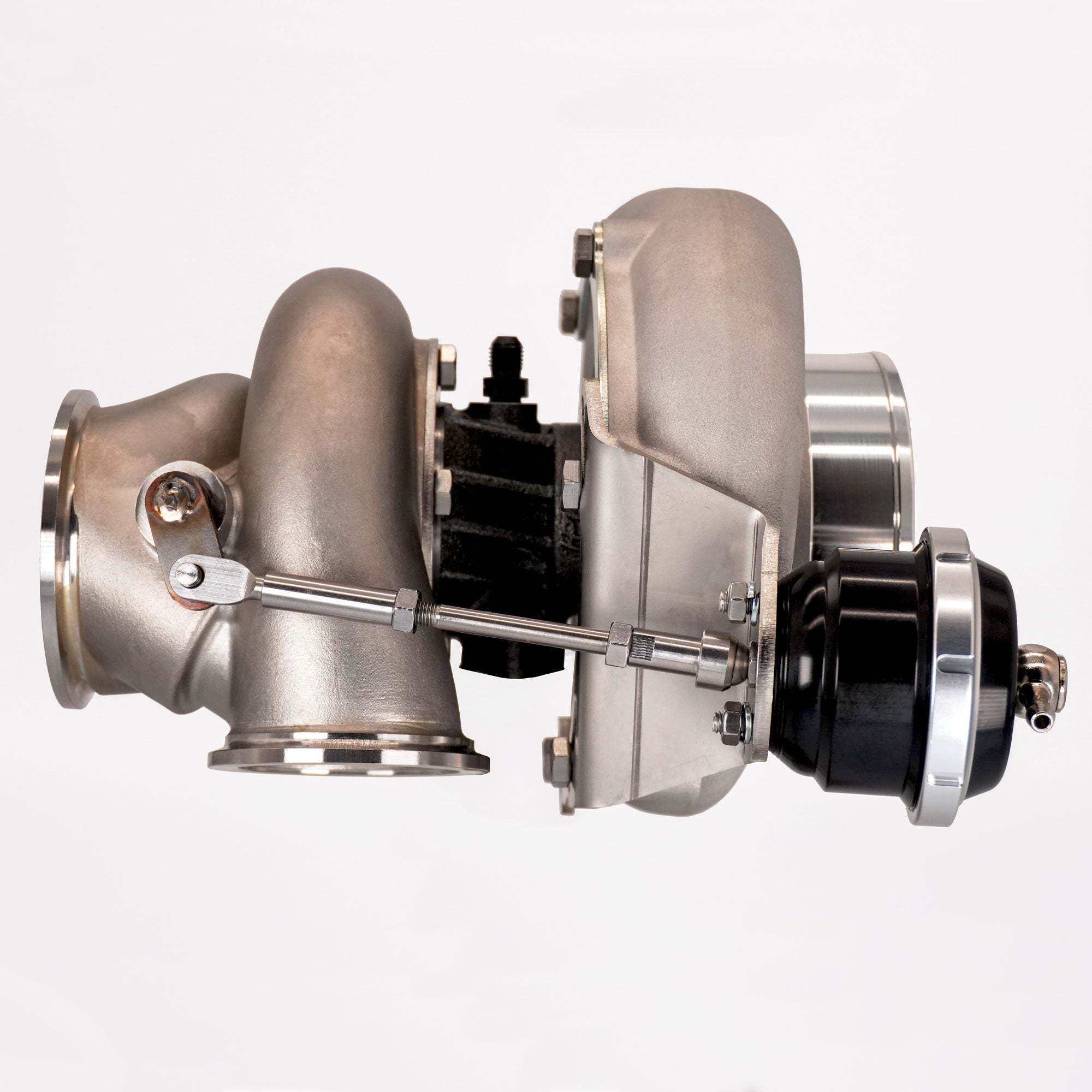

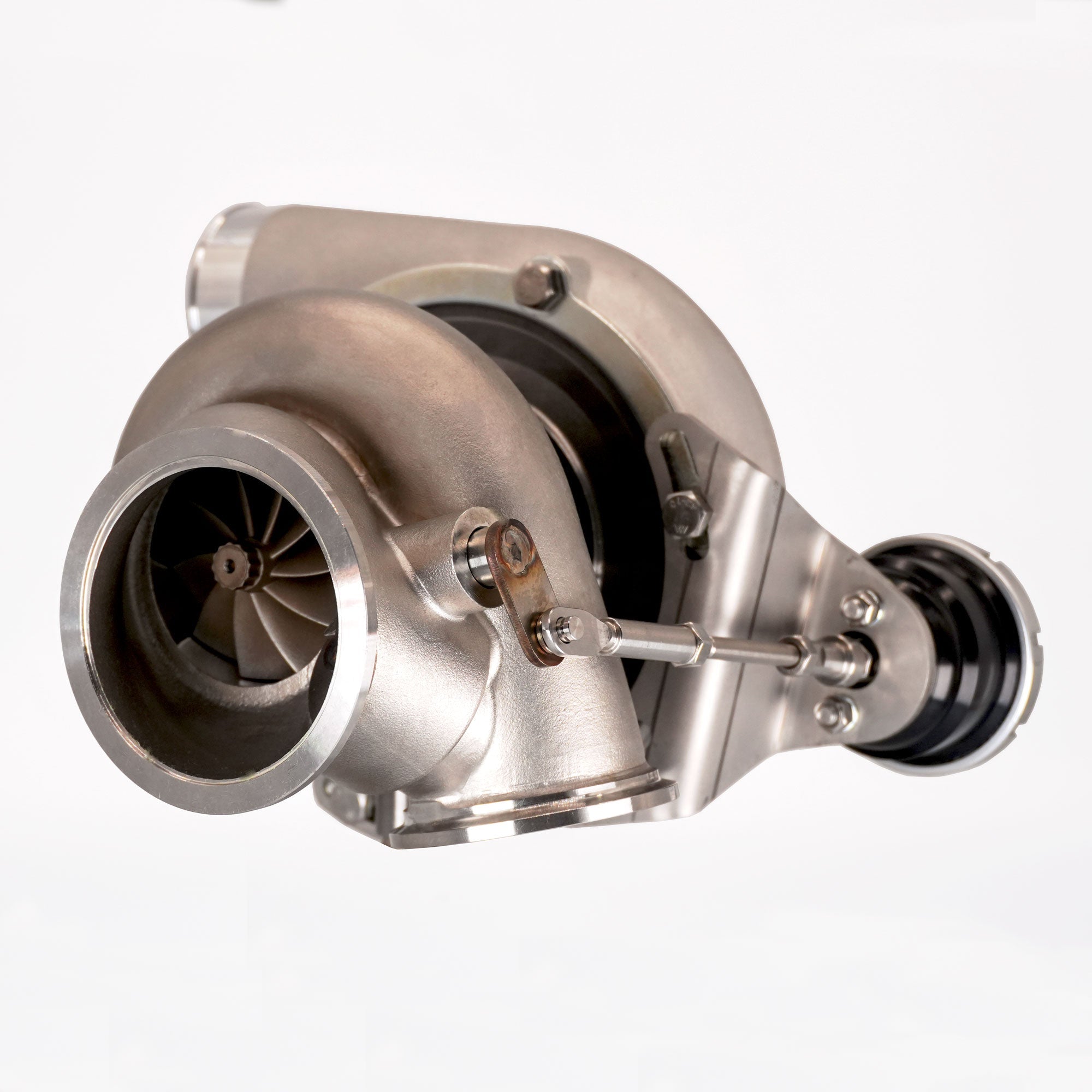

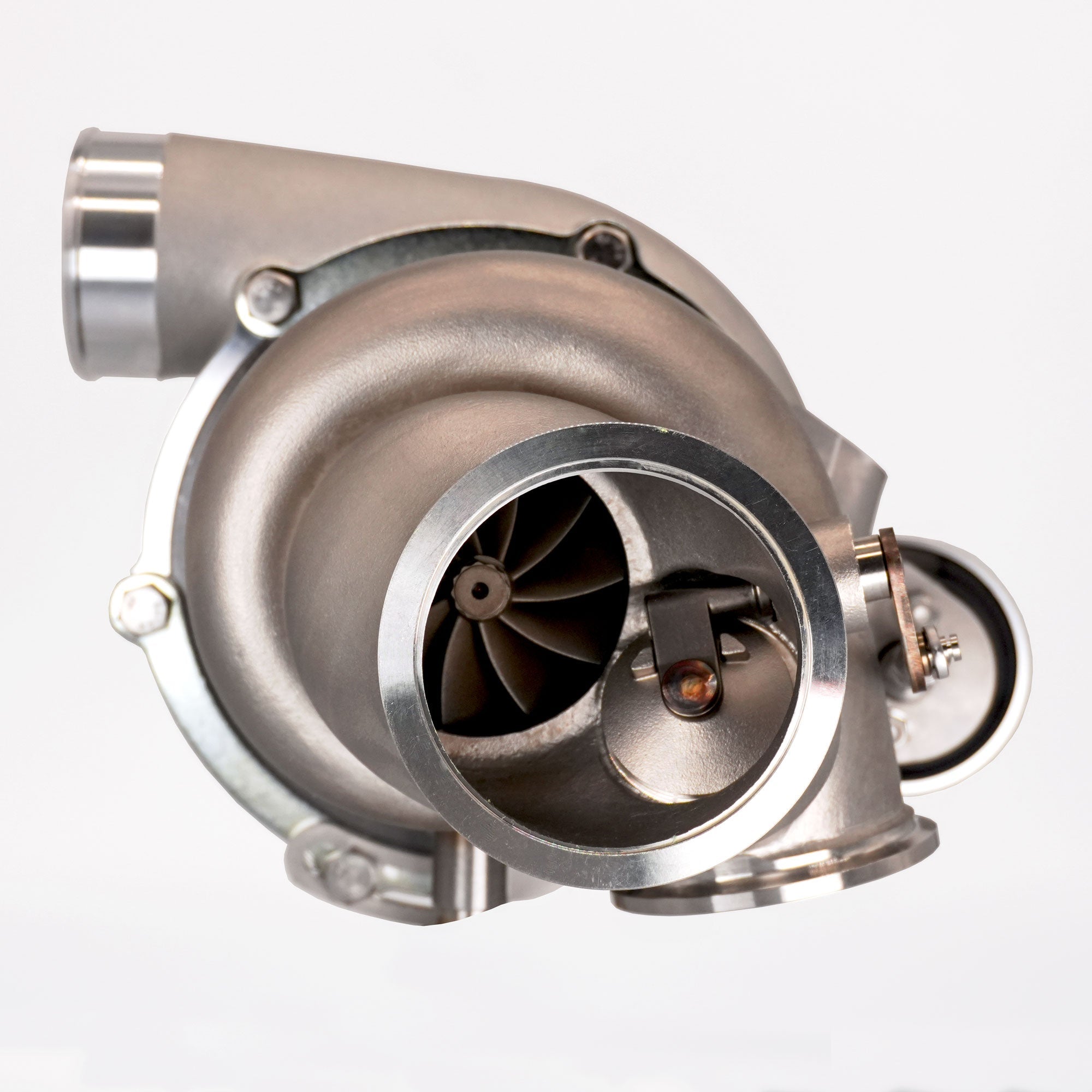

HPT F2 6466 Turbocharger IWG (Internally Wastegated)
Couldn't load pickup availability
HPT F2 6466 Internally Wastegated Turbocharger
Complete Turbocharger & Wastegate Package
The HPT F2 6466 Internally Wastegated Turbocharger package delivers the performance enthusiasts expect from the proven F2 6466 platform while simplifying installation with an integrated internal wastegate system. Designed for builders looking to save space, reduce noise, and eliminate the complexity of an external wastegate setup, this package is an excellent choice for street, drag-and-drive, and performance applications. Based on the proven F2 6466 turbocharger platform, this combination is capable of supporting up to 950 horsepower while maintaining excellent transient response thanks to HPT's Quick Spool Technology.
Capable of Supporting up to 950 Horsepower
Package Includes
- HPT F2 6466 Turbocharger
- Stainless Steel Internally Wastegated Turbine Housing
- Turbosmart GenV IWG TS-1 Twin Port Actuator - 14 PSI Spring Configuration
- IWG Actuator Bracket and Hardware
F2 6466 Features
- F2 Compressor Cover with Ported Shroud
- 2618 Forged Aluminum Compressor Wheel
- 713C Inconel Turbine Wheel
- Ceramic Dual Ball Bearing System
- Quick Spool Technology
- Stainless Steel Internally Wastegated Turbine Housing with .82 A/R
- Turbosmart GenV IWG TS-1 Twin Port Actuator
Specifications
- Compressor Wheel Inducer: 64.49mm
- Turbine Wheel Exducer: 66.04mm
- Compressor Inlet: 4"
- Compressor Discharge: 2.5"
-
Stainless Steel Internally Wastegated Turbine Housing with .82 A/R
- V-band inlet / V-band discharge
Whether you're looking to build a cleaner street car, simplify your turbo system, or maximize performance without the added complexity of an external wastegate, the HPT F2 6466 Internally Wastegated Turbocharger Package delivers the perfect combination of power, drivability, and ease of installation.
*Horsepower capability may vary based on engine combination, fuel type, tuning, and supporting modifications.
Racing Use Only, Not Legal for Road Use
