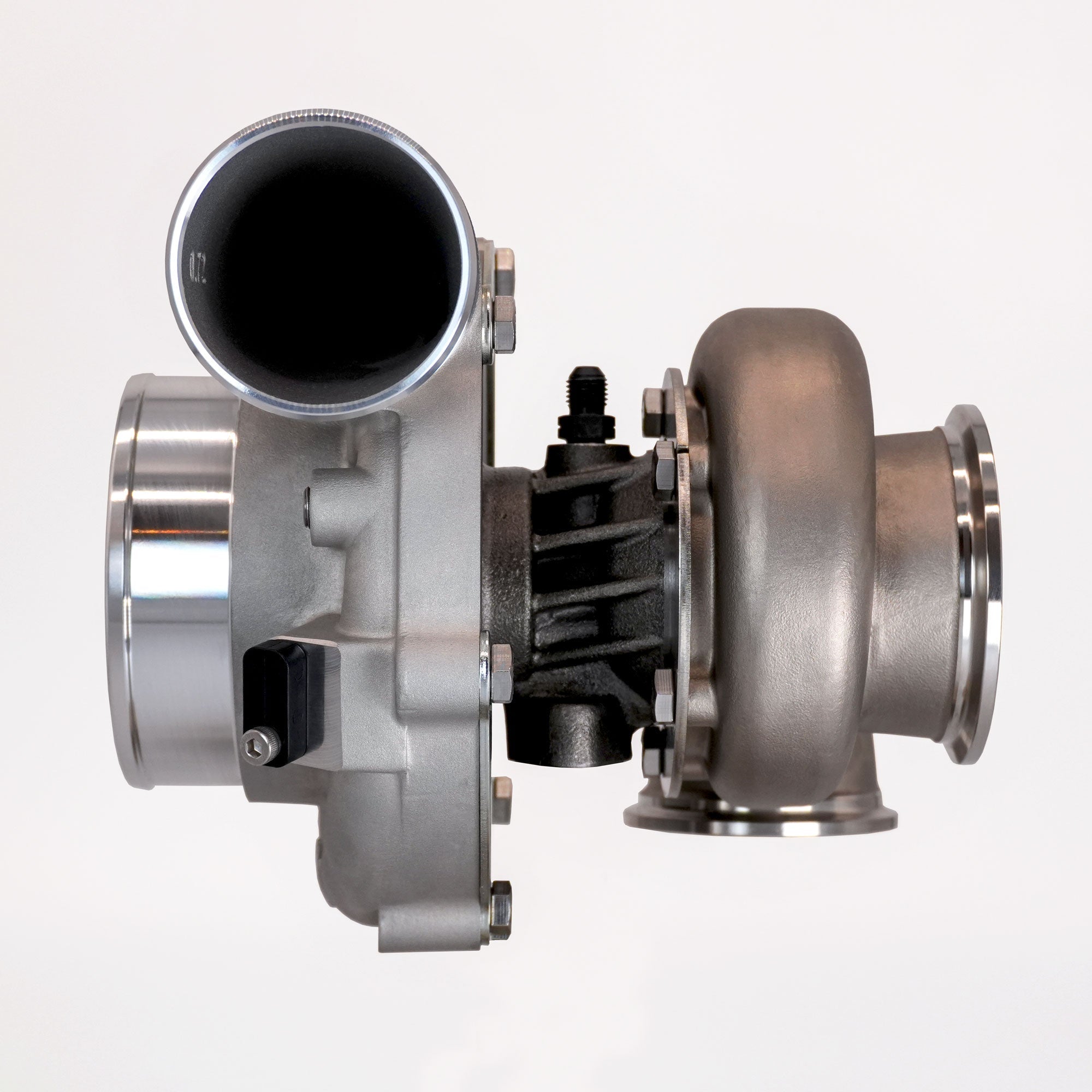

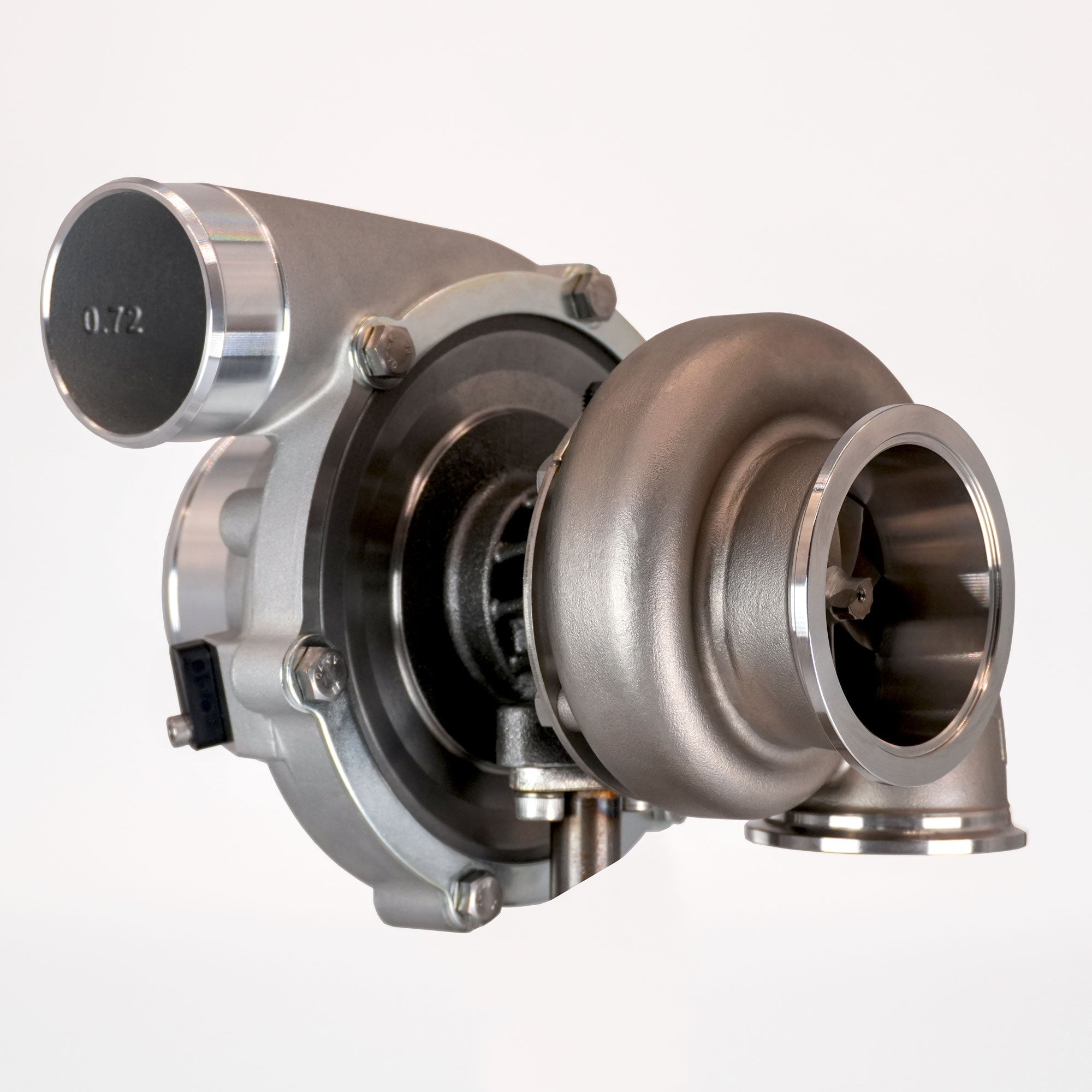

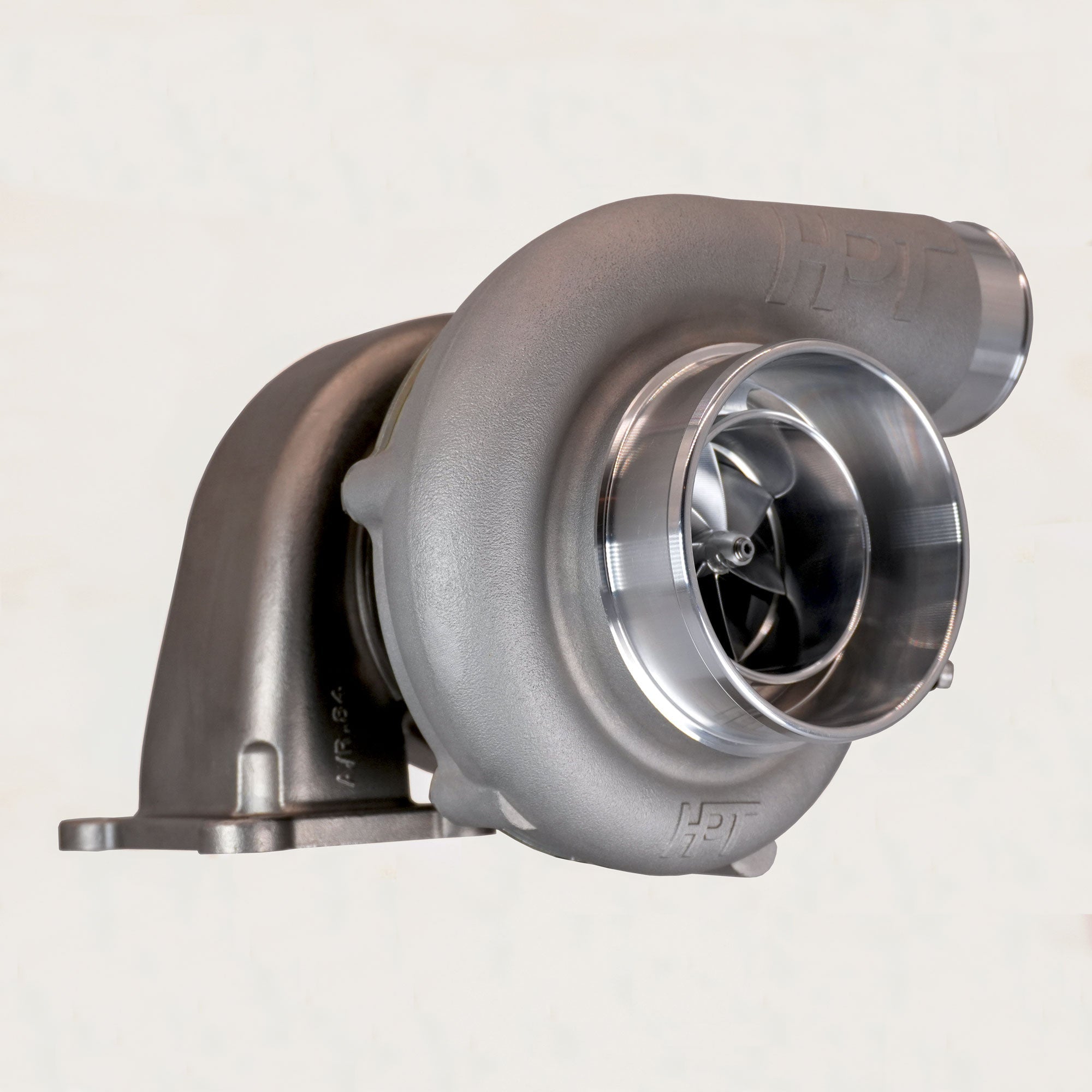

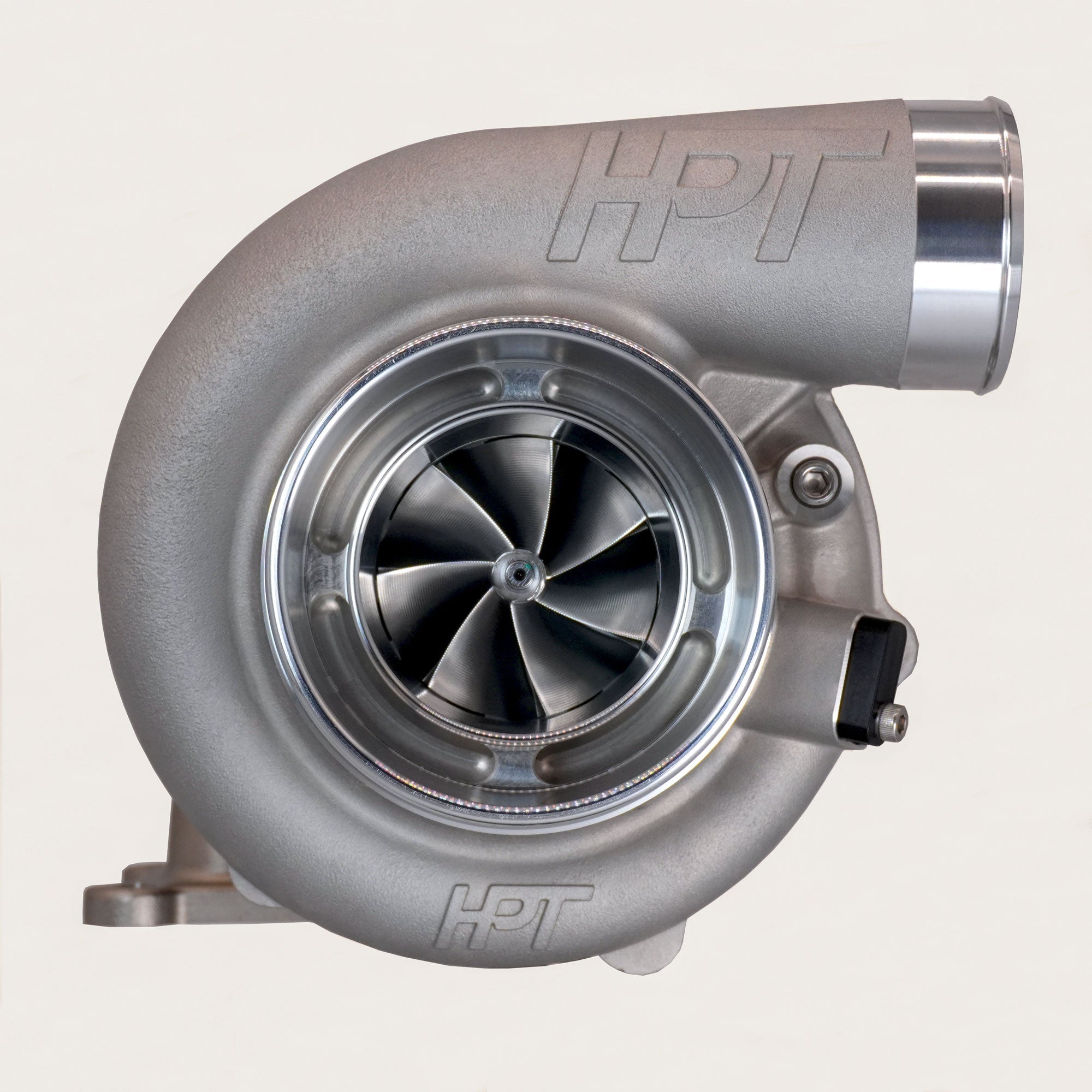

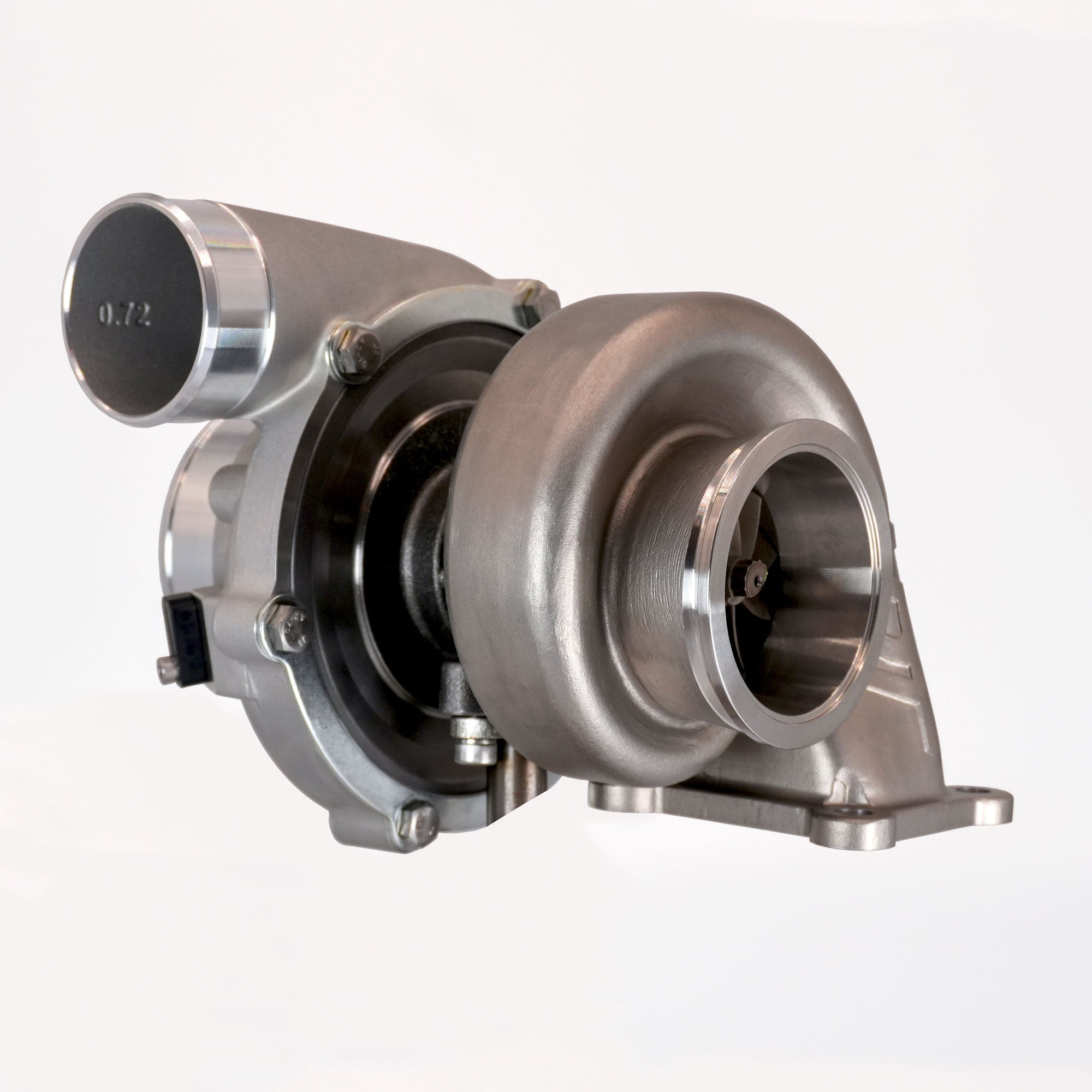

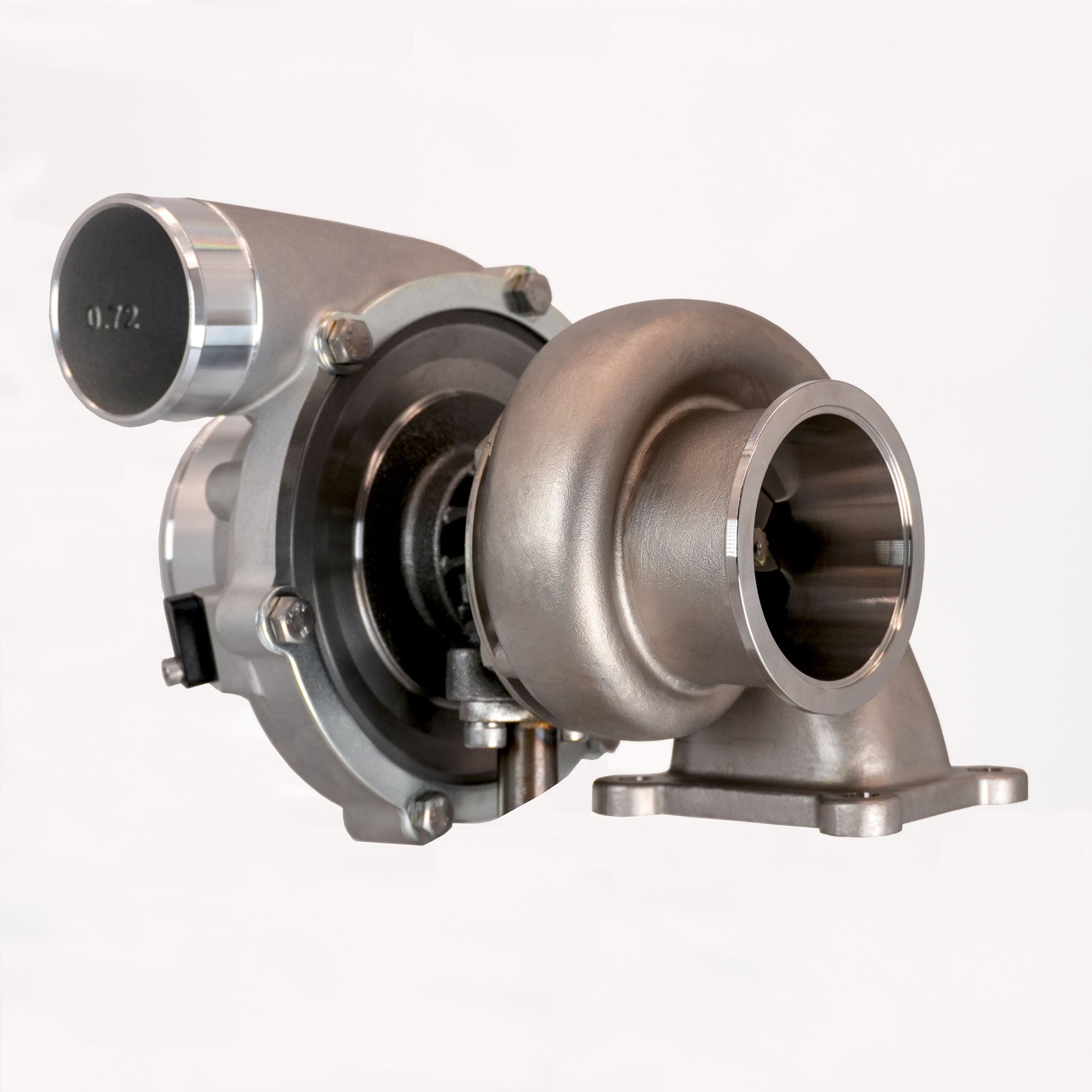

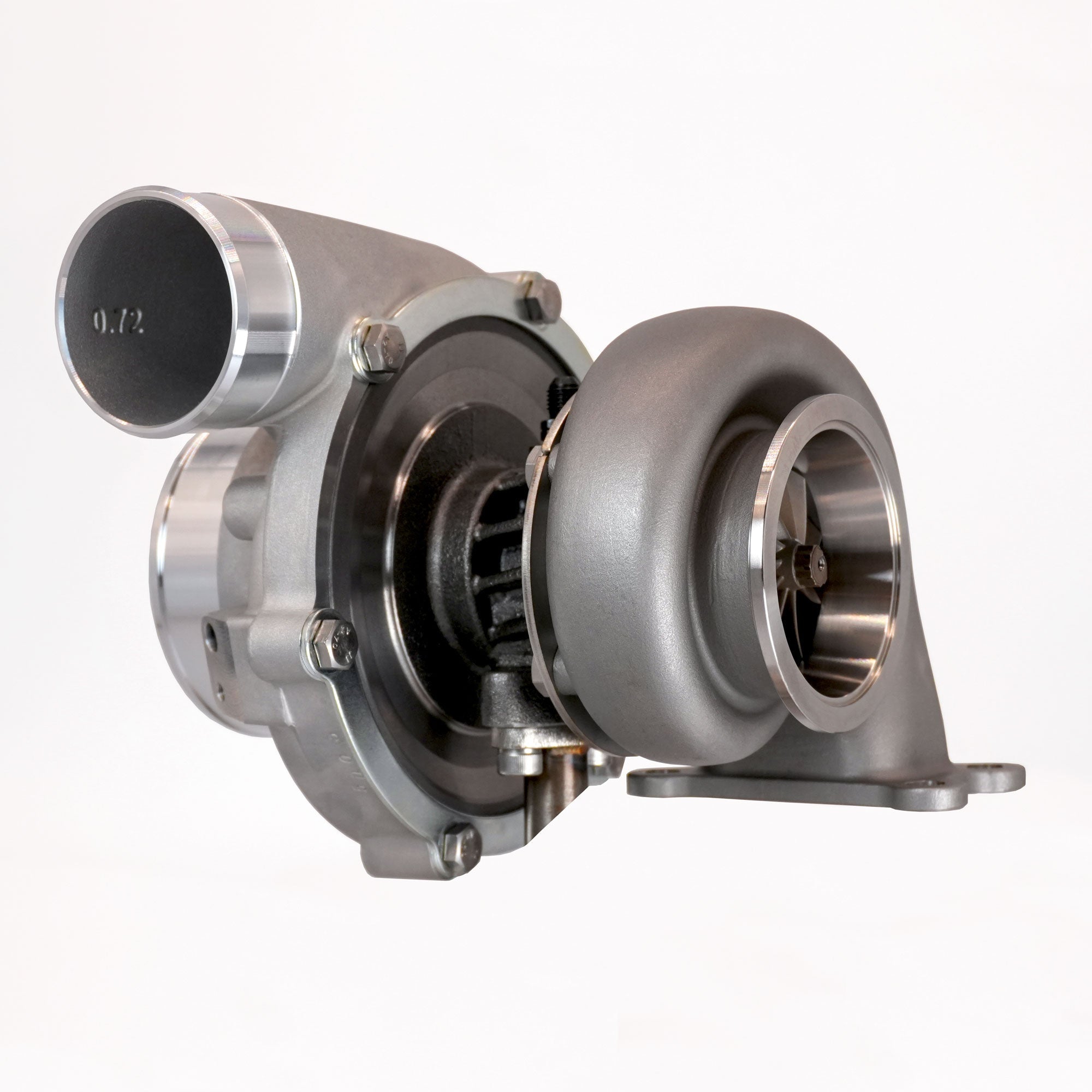

HPT F2 5558 Turbocharger
Capable of Supporting up to 650 Horsepower
The F2 5558 Turbocharger is equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag.
Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.
Features:
- F2 Compressor Cover w/ Ported Shroud
- 2618 Aluminum Compressor Wheel
- 713C Inconel Turbine Wheel
- Cast Iron Bearing Housing w/ Integrated Back Plate
- Ceramic Dual Ball Bearing System
- 310 Investment Cast Stainless Steel Turbine Housing
Stainless Steel Turbine Housing Options:
- T3 Inlet V-Band Discharge 0.63 A/R
- T3 Inlet V-Band Discharge 0.82 A/R
- V-Band Inlet V-Band Discharge 0.62 A/R (Uses F2 Inlet Flange)
- V-Band Inlet V-Band Discharge 0.82 A/R (Uses F2 Inlet Flange)
Specs:
- Compressor Cover Inlet: 4"
- Compressor Cover Discharge: 2 1/2"
- Compressor Wheel Inducer: 55.80mm
- Turbine Wheel Exducer: 58.50mm
Racing Use Only, Not Legal for Road Use
