Turbo speed sensors are a great tool for monitoring turbocharger performance, but not every customer chooses to run one. Because of this, HPT Turbochargers does not pre-drill the speed sensor port on every turbocharger we build.
The good news? Installing a speed sensor is quick and easy.
What You'll Need
-
1/4" drill bit
-
Drill
-
Turbo speed sensor
Installation Instructions

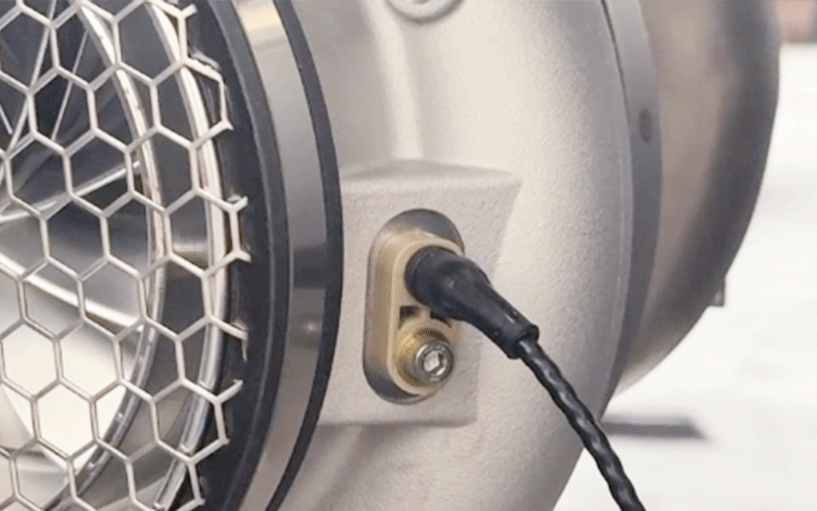

The speed sensor location is already cast into the turbocharger housing. To prepare the port, simply use a 1/4" drill bit and carefully drill through approximately 1/8" of material.
Once you've drilled through the material, the speed sensor should thread into the port without issue. That's it—your turbo is now ready for speed sensor installation and data logging.
>>> Click here for speed sensor installation instructions <<<
Why Run a Turbo Speed Sensor?
A turbo speed sensor allows you to monitor the actual shaft speed of your turbocharger. This information can be valuable when:
-
Optimizing turbocharger performance
-
Preventing overspeed conditions
-
Fine-tuning boost control strategies
-
Collecting data for race or dyno applications
While many racers and tuners benefit from speed sensor data, not every application requires it, which is why we leave the port undrilled unless requested.
Want to order one? Click here to get started!
Need Help?
If you have any questions about installing a speed sensor or determining whether one is right for your application, our team is here to help.
Give us a call and we'll be happy to walk you through the process.
