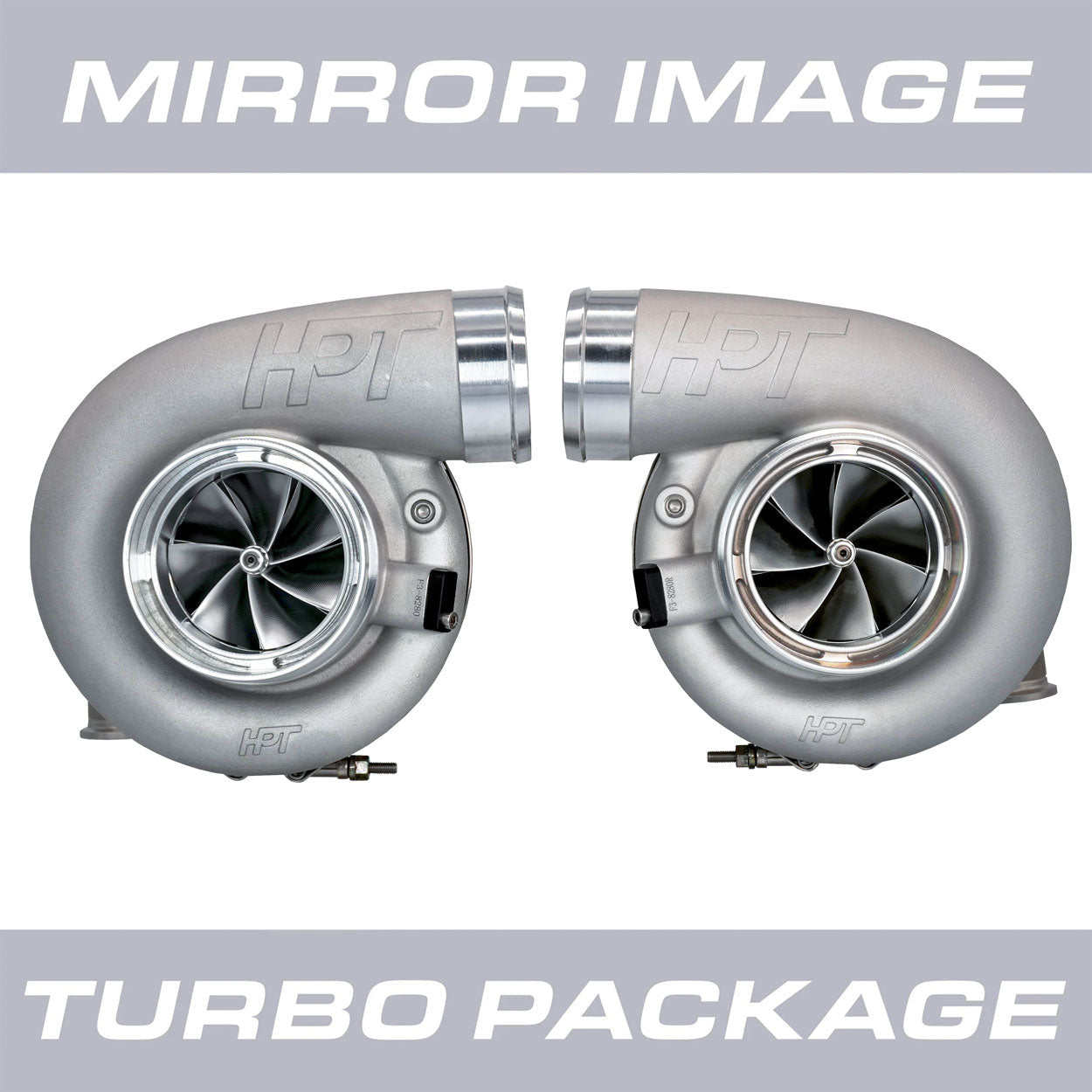

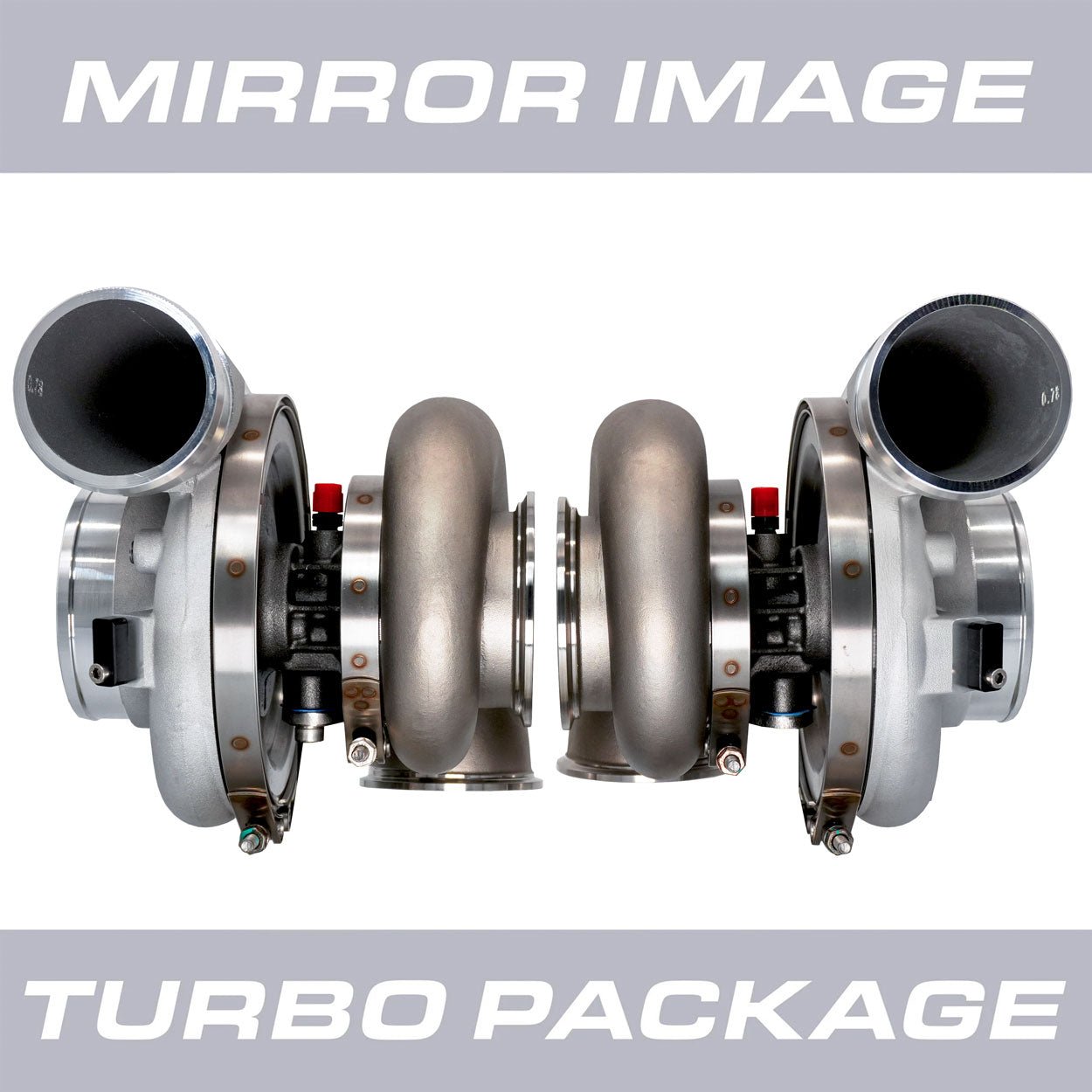

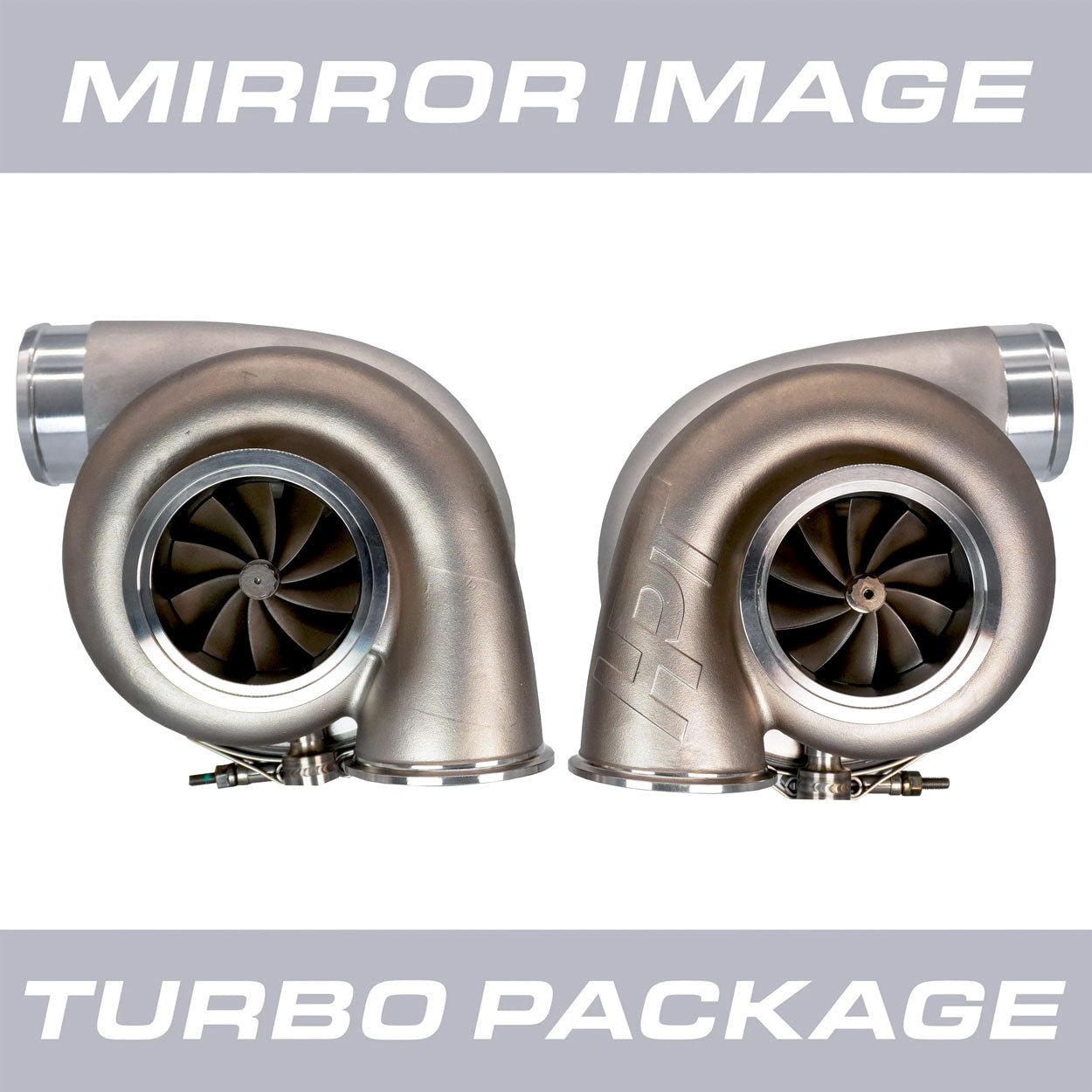

HPT F3 8280 Mirror Image Turbocharger Package with V-Band 0.96 A/R Turbine Housings

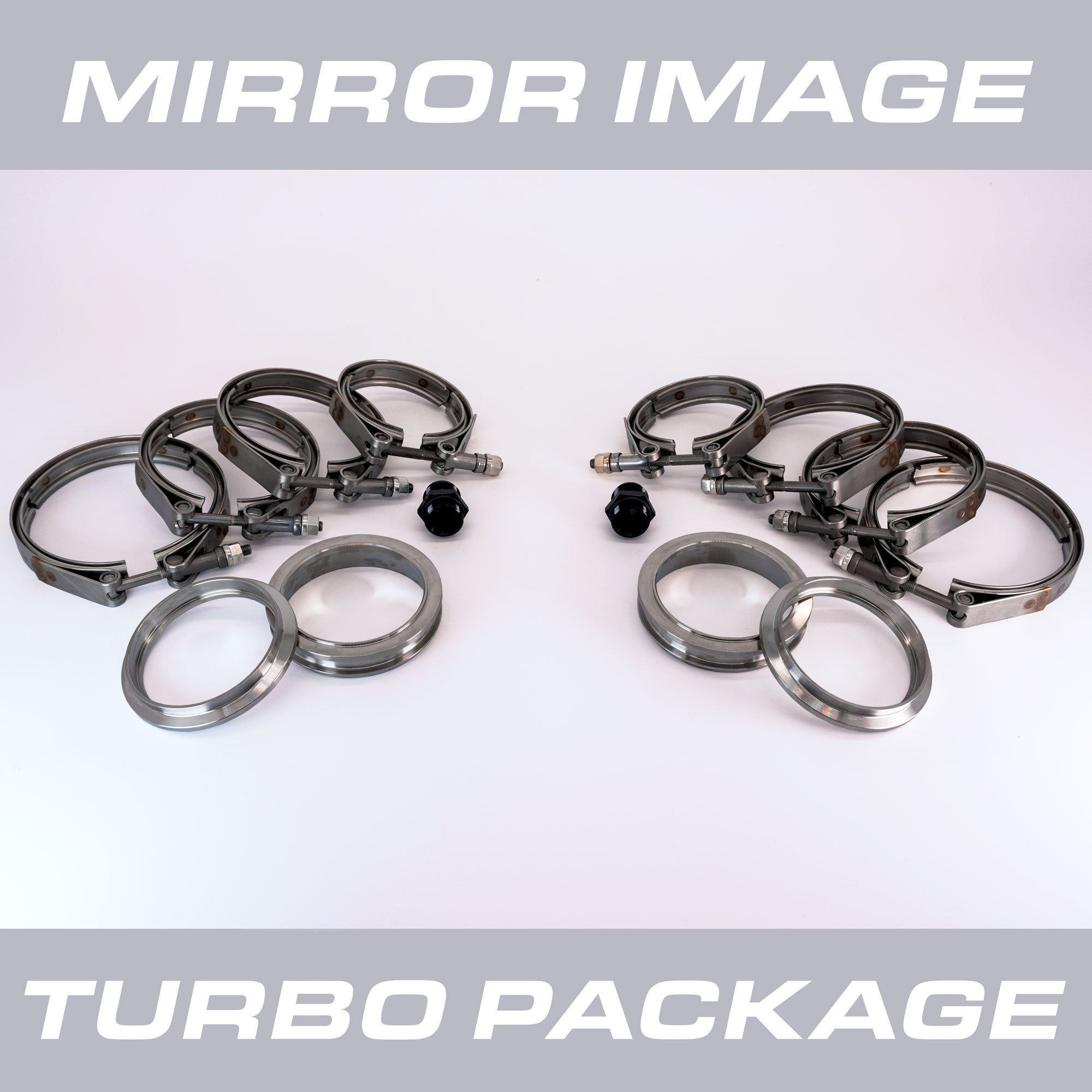

F3 8280 Mirror Image Kit Includes:

• (1) F3 8280 Standard Rotation Turbocharger

• (1) F3 8280 Reverse Rotation Turbocharger

• (2) Inlet Clamps

• (2) Inlet Flanges (For 3.00" Piping)

• (2) Discharge Clamps

• (2) Discharge Flanges (For 3.50" Piping)

• (2) 10AN Oil Drain Fittings

Capable of Supporting up to 3000 Horsepower

The F3 8280 Turbocharger is equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag.

Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.

Features:

• F3 Compressor Cover w/ Ported Shroud
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Iron Bearing Housing w/ Integrated Back Plate
• Ceramic Dual Ball Bearing System
• 310 Investment Cast Stainless Steel Turbine Housing

Specs:

• Compressor Cover Inlet: 4"
• Compressor Cover Discharge: 3"
• Compressor Wheel Inducer: 82.00mm

• Turbine Wheel Exducer: 80.00mm

Stainless Steel Turbine Housing Options:

• V-Band Inlet V-Band Discharge 0.96 A/R (3.00" Inlet Flange)



Racing Use Only, Not Legal for Road Use
